Classic and practical design
Conical light poles are made of high-quality materials such as galvanized steel or aluminum, which have excellent durability, corrosion resistance and wind pressure resistance. Its stylish design not only enhances the urban aesthetics, but also ensures long-lasting durability in various environmental conditions.
| Anodising | 10 colours |
|---|---|
| Luminaire mounting | directly on the column, luminaires with mounting ø60 mm with weight and surface parameters not exceeding the data from the strength table included in the technical data sheet |
| Extension arm type | according to resistance calculations |
| Packing | sleeve material |
| Performance under vehicle impact (passive safetly) | 50-NE-B-S-SE-MD-0, 70-NE-B-S-SE-MD-0, 100-NE-B-S-SE-MD-0 |
| Diameter at the base plate | 114 mm |
| Finish | brushed anodised aluminium – anode coating thickness is 20µm as standard (coating thicness of 25µm is also possible), option of elastomer protection in column’s colour up to a height of 350 mm (other height on customer’s request) – the thickness of the protective coating ranges from 0.8 mm to 1.2 mm |
| Ingress protection | IP54 for wire chamber |
| Diameter of the column ending | ø60 mm |
| Model No. | Height(m) | Top OD(mm) | Base OD(mm) | Wall Thickness (mm) | Base Plate (mm) | Hole Distance (mm) |
|---|---|---|---|---|---|---|
| MF-AAA-4 | 4 | 60 | 127 | 3.0 | 230x230x15 | 135.7×135.7 |
| MF-AAA-5 | 5 | 60 | 140 | 3.0 | 240x240x15 | 143.5×143.5 |
| MF-AAA-6 | 6 | 60 | 152 | 3.2 | 260x260x16 | 170.4×170.4 |
| MF-AAA-7 | 7 | 60 | 152 | 3.2 | 260x260x16 | 170.4×170.4 |

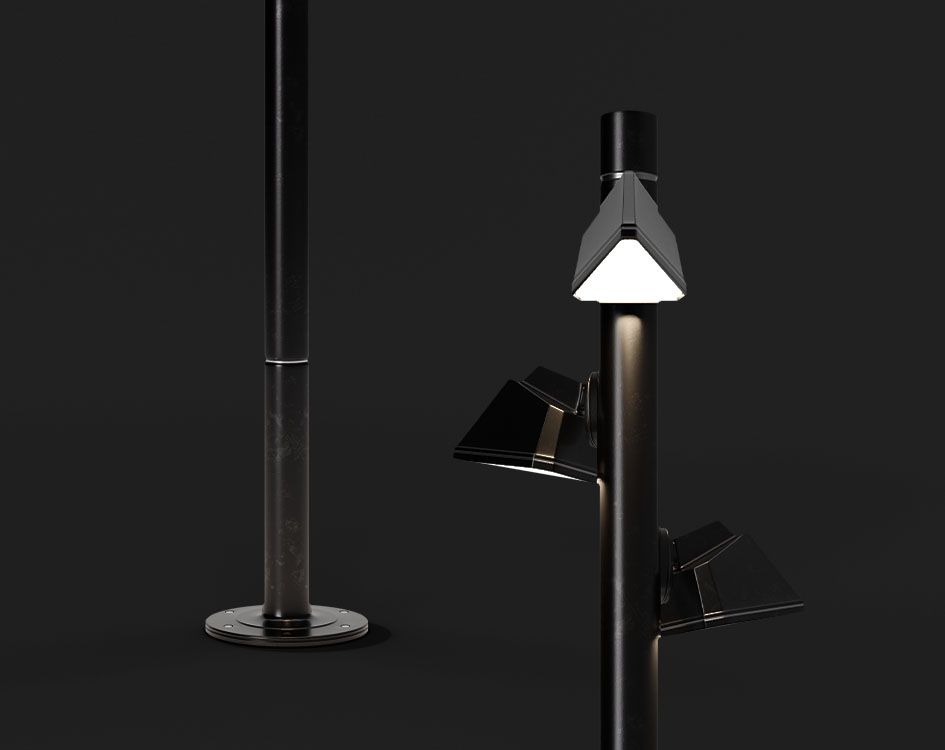

The streamlined tapered design enhances the urban landscape while supporting the installation of a variety of lighting and smart devices.
The structure is more convenient to transport and install, and the height, efficient wall thickness and surface treatment can be customized according to needs.
Made of high-strength steel bars or aluminum alloy, with excellent wind resistance, earthquake resistance and corrosion resistance.

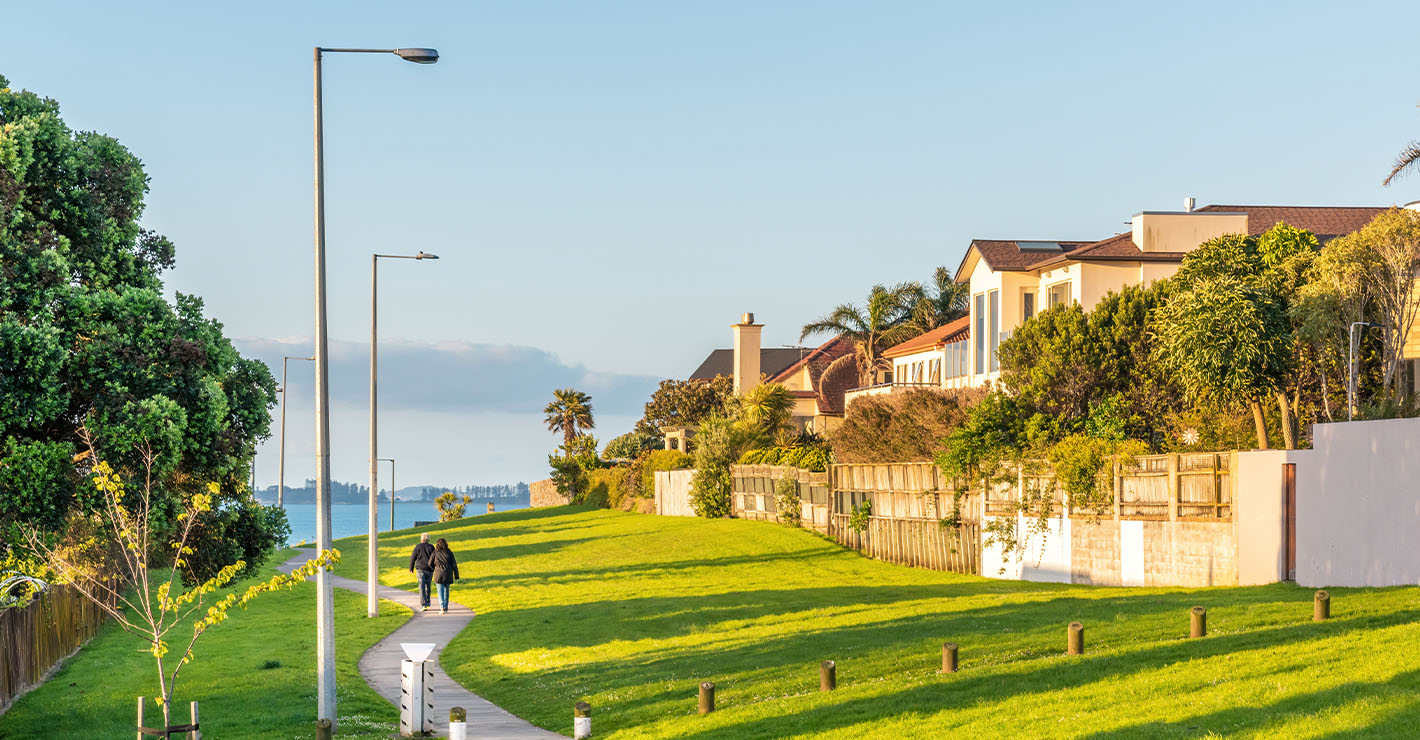

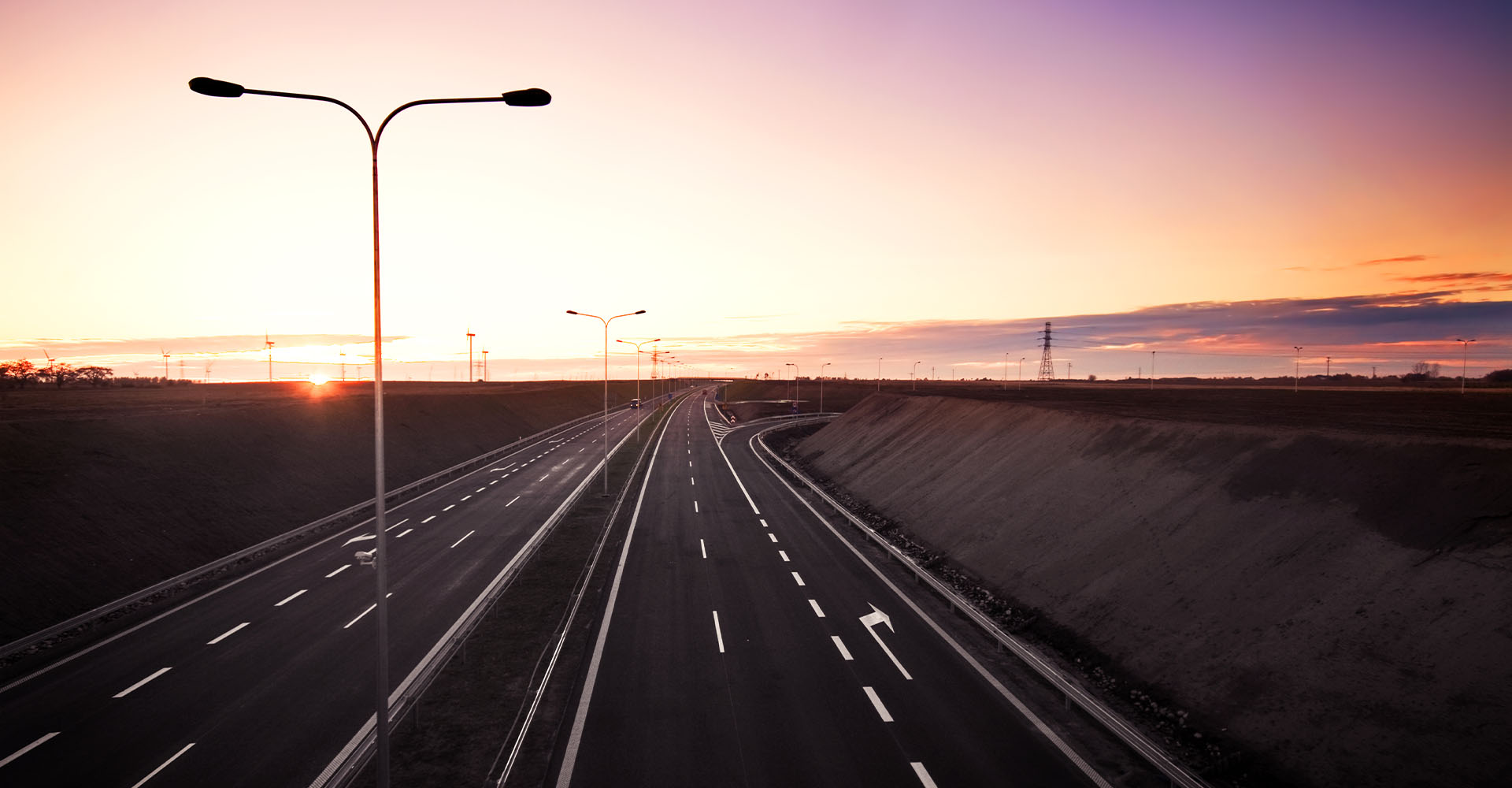

Adding new splendor to the streets
