Intelligence begins with a single pole.

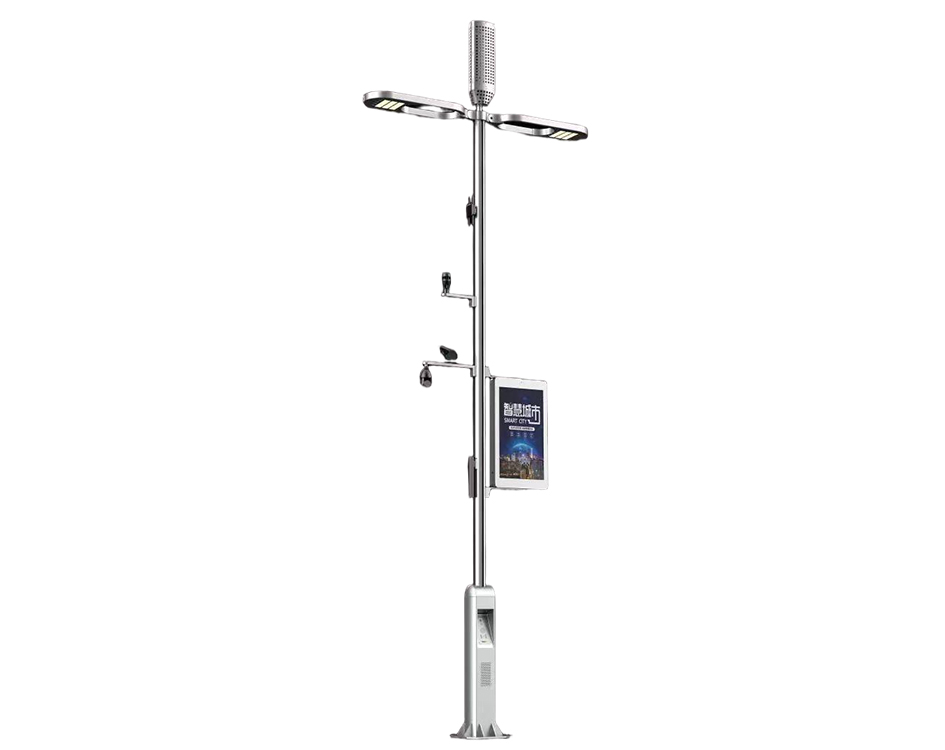

The smart pole integrates lighting, surveillance, 5G, environmental sensing, and digital displays into a sleek, modern design. As an intelligent urban node, it enhances connectivity, improves public services, and supports smart city infrastructure with a futuristic aesthetic and powerful multifunctional capabilities.
| INTEGRATED SYSTEMS | COMMUNICATION: Equipped with multi-protocol gateways for device connectivity & data backhaul. Optional fiber optic terminal.
SENSING: Multi-functional sensors: Environmental, Traffic,Security. CONTROL: Centralized management platform for remote monitoring, fault diagnosis, policy scheduling, and energy optimization. |
|---|---|
| HOUSING & STRUCTURE | Robust modular design using die-cast/extruded aluminum alloy. Enhanced IP66+/IK10 rating. Integrated cable management ducts & standardized equipment bays. |
| POWER SYSTEM | Dual-mode power supply: Grid+ Solar/battery backup. Integrated PoE++/SPoE ports for low-power devices. Smart meters for energy consumption analysis. |
| DATA & SECURITY | Embedded edge computing nodes for local data processing. Hardware security modules (HSM) & encrypted transmission (TLS/DTLS). GDPR/CCPA compliant data management. |
| USER INTERFACE | Optional: Interactive touchscreen/kiosk, emergency call button, public broadcasting, EV charging interface (Type 2/CCS), digital signage. |
| MOUNTING & DEPLOYMENT | Standardized flange/base interface. Pre-configured slots for rapid accessory installation. Geotechnical adaptability design. |
| CERTIFICATIONS | Complies with IEC 62443 (cybersecurity), ISO 37101 (smart cities), UL 1443/ETSI EN 301 489 (EMC), ANSI C136 series, RoHS/REACH. Local regulatory approvals. |
| MAINTENANCE & LIFECYCLE | Predictive maintenance via IoT diagnostics. Hot-swappable components. Minimum 10-year structural warranty. L90 > 100,000 hours (LED). |
| OPTIONS & CUSTOMIZATION |
Connectivity: Private 5G micro基站, RSU (V2X), Satellite IoT. Sustainability: Wind turbine hybrid system, phase-change material thermal management. Smart Services: License plate recognition, crowd density analytics, microclimate monitoring. |
| Height(mm) | Top OD(mm) | Butt OD(mm) | Light Arm Length(mm) | Light Fixture Connection OD (mm) | Wall Thickness (mm) | Base Plate (mm) | Hole Distance (mm) |
|---|---|---|---|---|---|---|---|
| 12000 | 180 | 360 | 1200 | – | 4.5 | 450x450x20 | 400×400 |
The smart pole combines lighting, surveillance, LED display, 5G communication, and environmental monitoring.It maximizes utility while saving space and reducing infrastructure costs.

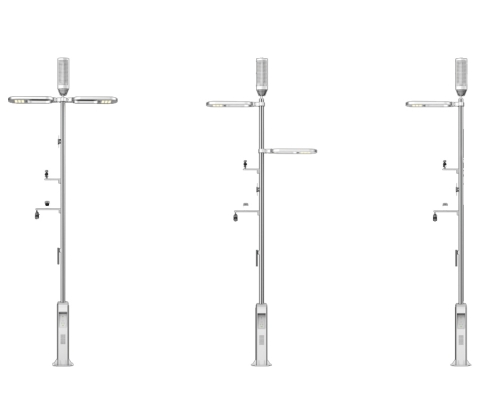

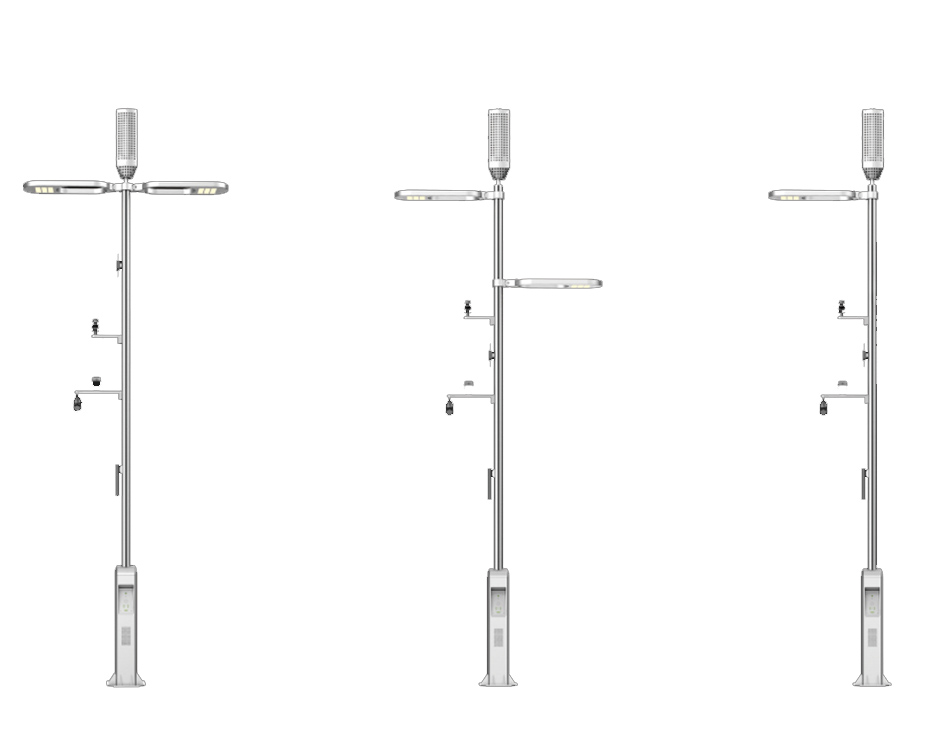

The pole features a sleek, modern design that blends technology with aesthetics.Its streamlined structure and integrated lighting enhance the visual identity of smart urban spaces.
Equipped with sensors, cameras, and 5G modules, it enables real-time data collection and response.As a vital IoT node, it enhances city management, safety, and connectivity.

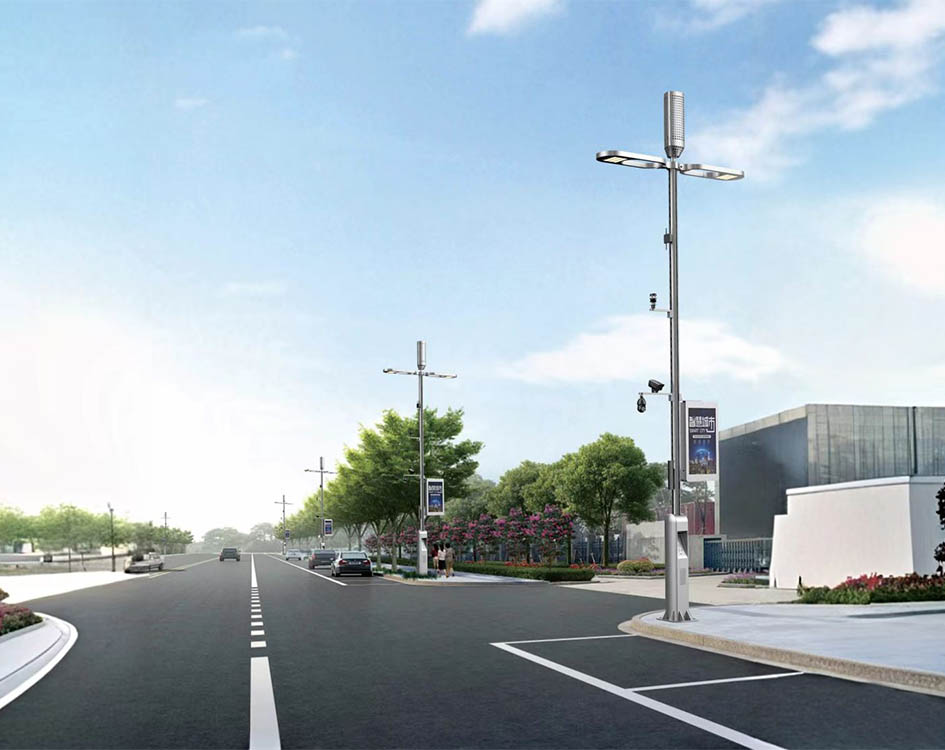

Adding new splendor to the streets
