Standard Flag Pole
Reliable & Customizable Flagpoles for Every Occasion
Crafted from robust steel and featuring professional engineering, our standard flagpoles offer enduring strength and a polished appearance to enhance any setting.
| MAIN SHAFT | Constructed from high-quality aluminum alloy 6063 and stainless steel (typically 201/304/316L) for reliable durability |
|---|---|
| TOP FINIAL | Sturdy stainless steel or steel finial, available in classic or custom designs |
| RAISING SYSTEM | Features an easy-to-use electric motor, durable stainless steel raising ropes, and accessories for safe and effortless flag raising and lowering |
| CUSTOMIZED LOGO | Personalize your pole with your company logo, emblem, or specific design elements |
| LIGHTING OPTIONS (Optional) | Enhance visibility at night with available lighting solutions tailored to your requirements |
| DAMPER | Damper will be designed and installed inside the pole to avoid shaking and unsatety factors |
| ANCHOR BOLTS | High-strength anchor bolts ensure secure and stable installation |
| Finish | Anodize for aluminum, satin brush and polish for stainless steel, powder coating for both |
| design & ENGINEERING | Engineered to meet relevant industry standards for safety and performance |
Technical Data
| Height(mm) | Top OD(mm) | Butt OD(mm) | Wall Thickness (mm) | Base Plate (mm) | Hole Distance (mm) |
|---|---|---|---|---|---|
| 6000 | 83 | 152 | 3.2 | 258x258x16 | 170×170 |
| 7000 | 83 | 165 | 3.5 | 270x270x18 | 180×180 |
| 8000 | 83 | 165 | 3.5 | 270x270x18 | 180×180 |
| 9000 | 85 | 178 | 4.0 | 286x286x18 | 190×190 |
| 10000 | 85 | 178 | 4.0 | 286x286x18 | 190×190 |
| 11000 | 85 | 203 | 4.8 | 305x305x19 | 206×206 |
| 12000 | 85 | 203 | 4.8 | 305x305x19 | 206×206 |
Features

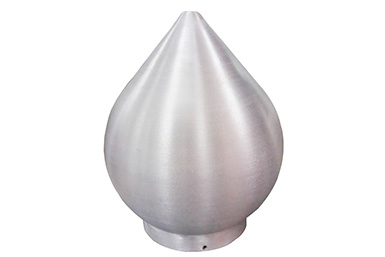

Top Finial
Decorative ball head featuring an integrated pulley system for smooth halyard operation at the flagpole’s peak.

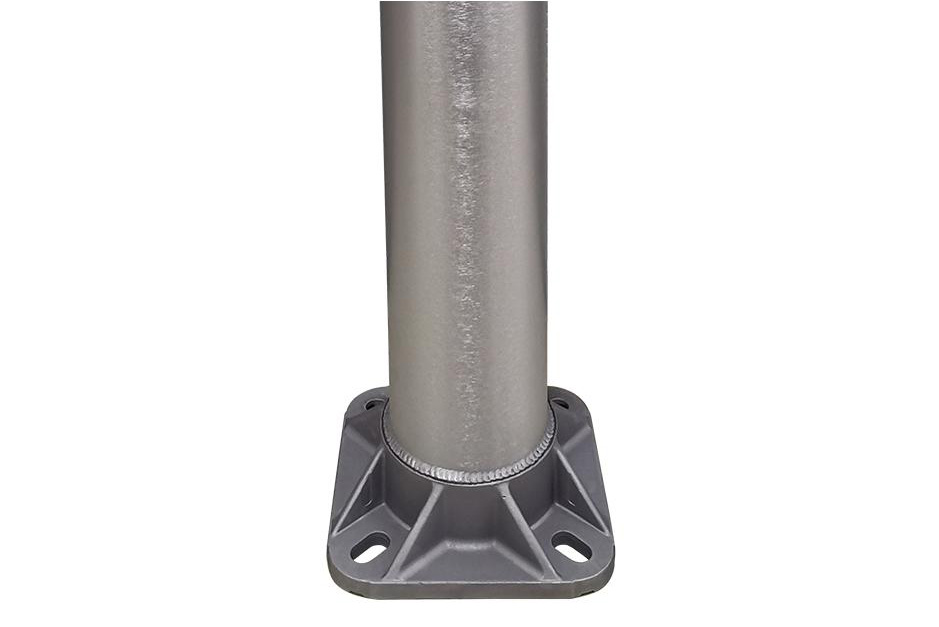

Base Weld Seam
Precision welding seam on the aluminum flagpole base, ensuring structural integrity and durability.

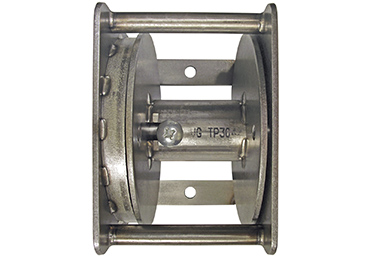

Internal Halyard
Manual winding mechanism housed inside the flagpole for easily raising and lowering the flag cable.

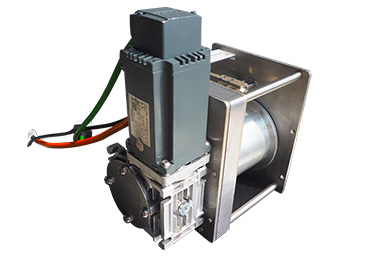

Internal Flagpole Motor
Electric motor unit installed internally for automated flag raising and lowering.

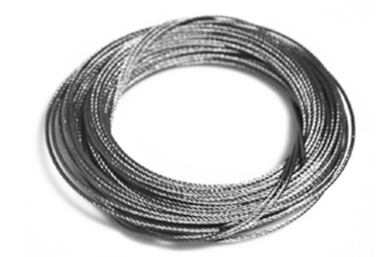

Stainless Steel Rope
Durable stainless steel cable running internally, designed for reliable flag hoisting and lowering.

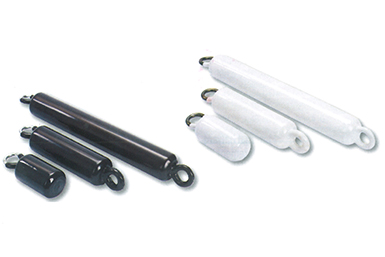

Counterweight
Weighted device attached to the flag, ensuring it remains fully displayed even in low wind.

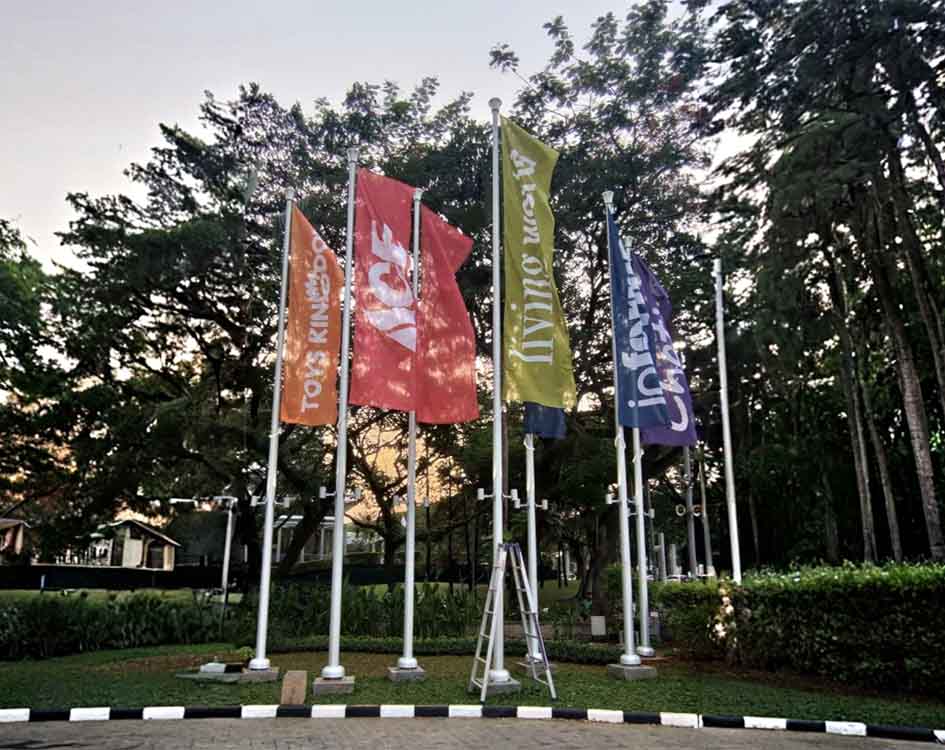

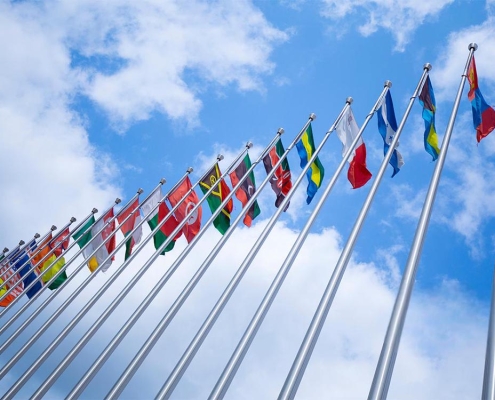

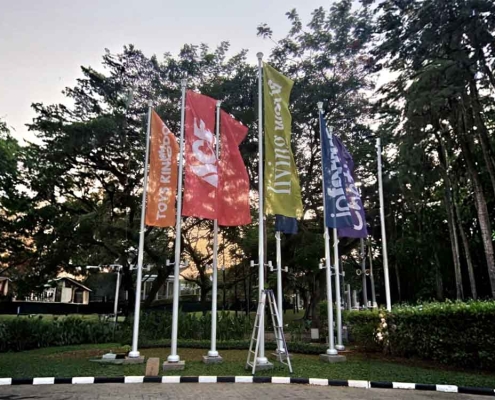

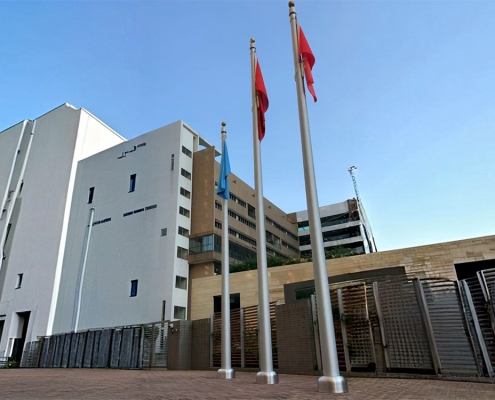

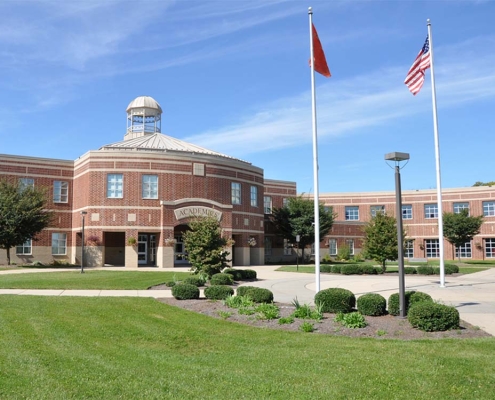

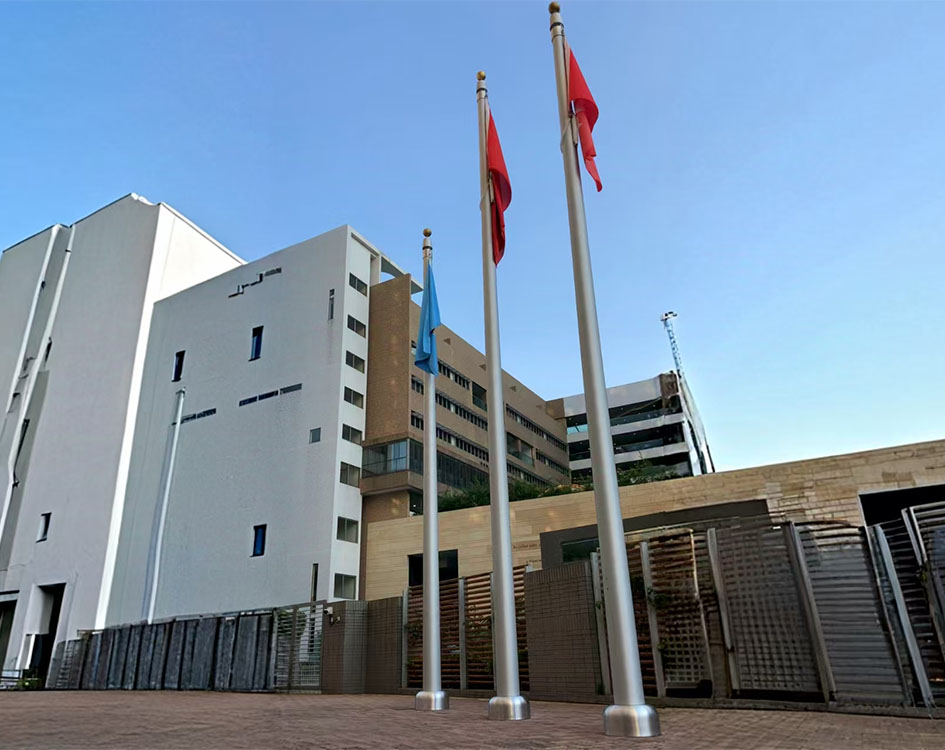

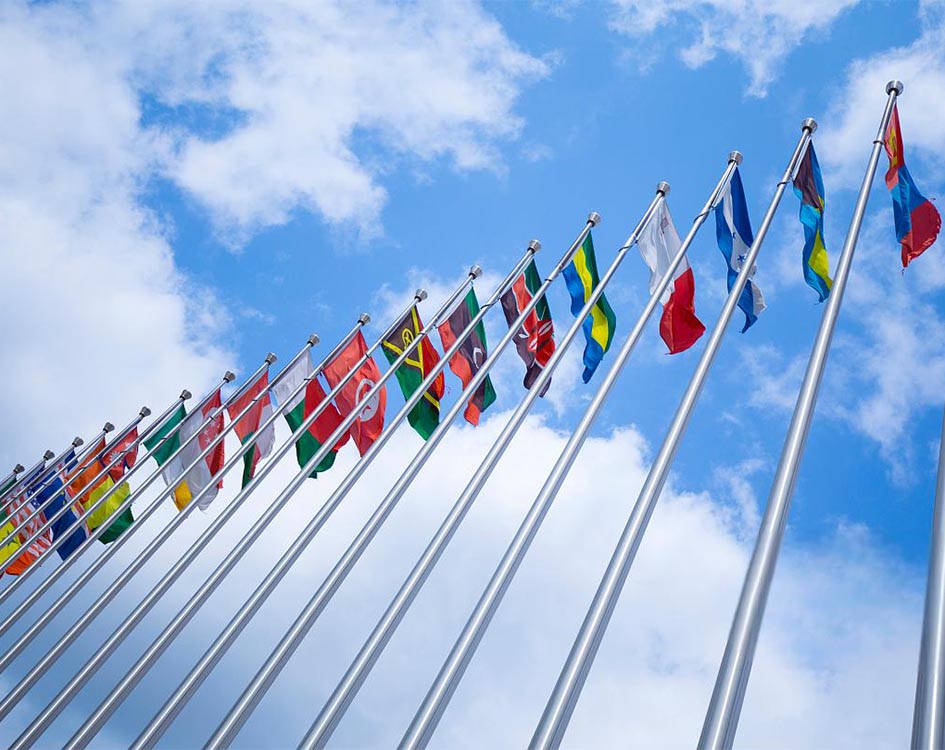

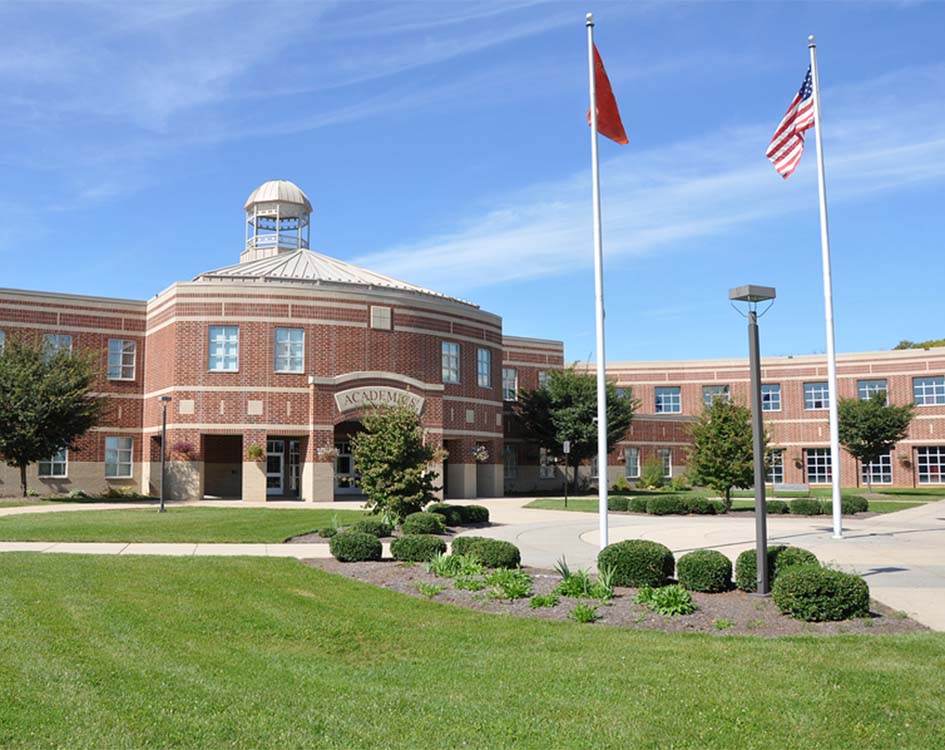

Project examples
Adding new splendor to the streets
