Towering structures delivering powerful illumination for vast areas.
Engineered for long-term reliability, they feature exceptionally robust construction with superior wind and seismic resistance. Furthermore, the common integration of smart lifting systems dramatically streamlines fixture maintenance and replacement, significantly reducing lifecycle costs, making them an efficient, reliable, and safe foundational solution for critical nighttime illumination.
| POLE | The pole shaft is made from steel Q355 or Q460, hot-dip galvanized and coated for corrosion resistance and long-term structural integrity. |
|---|---|
| LUMINAIRE MOUNT | The luminaire mount accommodates multiple floodlights with adjustable angles to meet various lighting requirements. |
| HANDHOLE | Equipped with a lockable handhole for easy electrical maintenance and wiring operations, with grounding provision. |
| BASE COVER | Optional round or square base cover for enhanced appearance and protection from debris. |
| LAMP PLATFORM | Hoistable lamp platform for ground-level maintenance; made from stainless steel or aluminum alloy for superior corrosion resistance. |
| HOISTING SYSTEM | Electric or manual hoisting mechanism with safety lock and guiding system for smooth and safe operation. |
| ANCHOR BOLTS | Anchor bolts comply with ASTM or national standards, hot-dip galvanized for corrosion resistance. |
| FINISH | Standard finish is hot-dip galvanizing with outdoor weather-resistant powder coating; fluorocarbon coating and other high-durability finishes are available. |
| DESIGN CRITERIA |
Design meets GB, EN, or ANSI standards, customized to project requirements. |
| Height(m) | Top OD(mm) | Butt OD(mm) | Light Arm Length(mm) | Light Fixture Connection OD (mm) | Wall Thickness (mm) | Base Plate (mm) | Number of sections(pcs) |
|---|---|---|---|---|---|---|---|
| 20 | 220 | 480 | – | – | – | OD850 | 2 |
| 25 | 250 | 580 | – | – | – | OD950 | 3 |
| 30 | 250 | 650 | – | – | – | OD1020 | 3 |
| 35 | 250 | 720 | – | – | – | OD1100 | 4 |
| 40 | 250 | 800 | – | – | – | OD1150 | 4 |
| 45 | 250 | 920 | – | – | – | OD1340 | 5 |

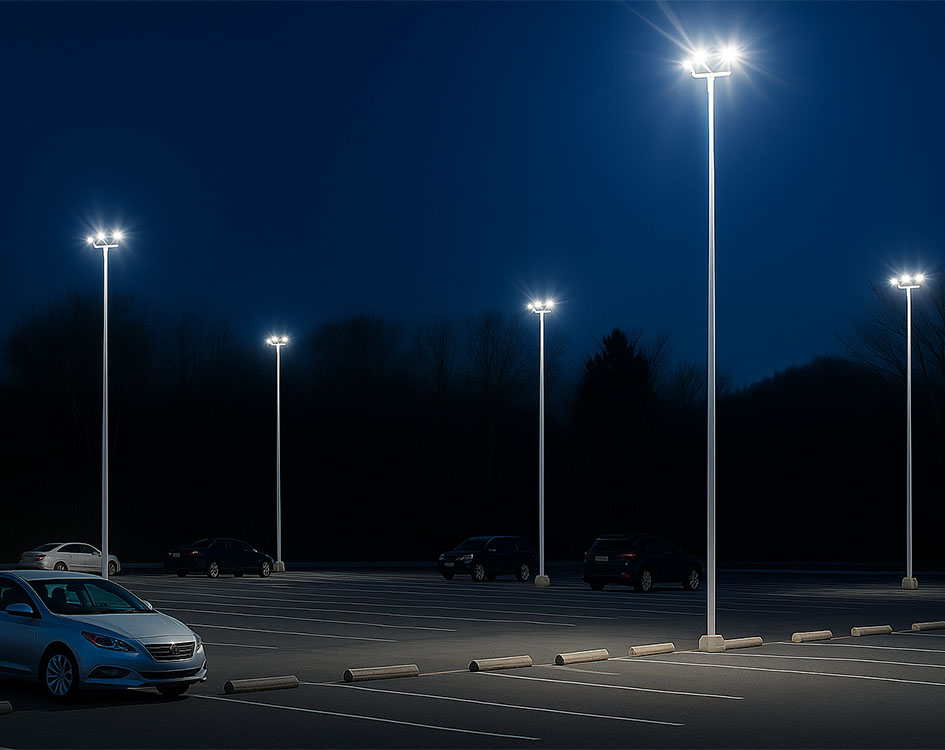

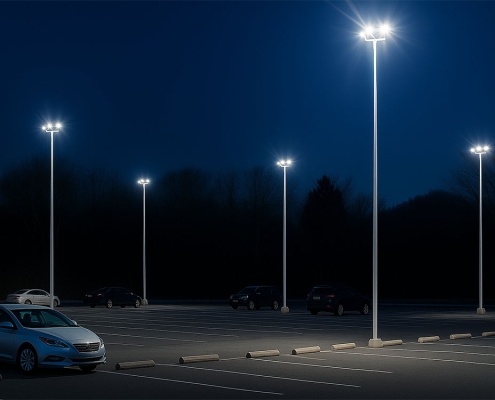

High-mast lights are freestanding lighting towers, typically ranging from 15 to 40 meters or higher.
Their primary function is to deliver high-intensity, uniform light over extensive areas.
They are critical for illuminating large-scale spaces like seaports, international airports, transportation hubs, stadiums, industrial zones, and urban squares.
