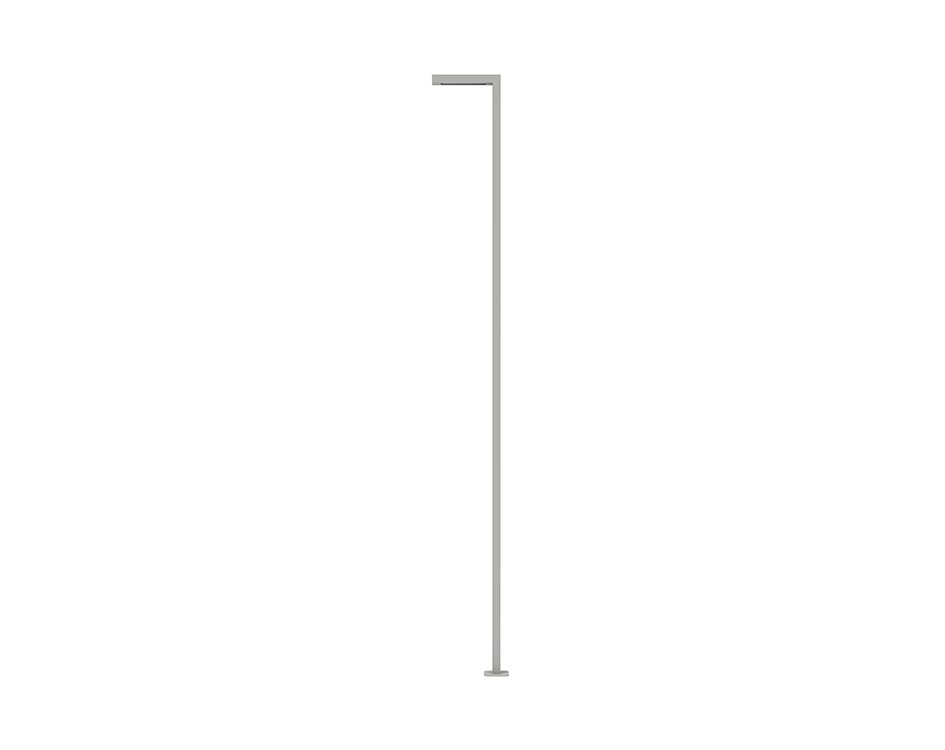

Square Light Pole

Classic and practical design

Crafted from high-grade aluminium alloy,the pole guarantees lightweight strength,corrosion resistance and long-term structural integrity,even in harsh weather conditions.

Get Quote Now

Pole	The pole shaft is spun from seamless alloy aluminum 6063 pipe
Pole Top	A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles receiving drilling patters for side-mount luminaire arm assemblies
Handhole	A covered handhole with hardware and grounding provision are provided
Base Cover	Optional round or square base cover available as special order
Anchor Base	The anchor base is cast from A356 alloy aluminum. The completed assembly is heat-treated to a T6 temper. Aluminum nut covers are included with anchor base unless otherwise specified
Anchor Bolts	Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers. Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end
Finish	The standard finish for the pole assembly and components is satin brushed, natural anodize, duranodic or polyester powder applied coating in ac- cordance with Landmark’s Specifications. Additional finish options available upon request
Design Criteria	Please reference Design Criteria Specification for appropriate design conditions

10 unique anodizing colours

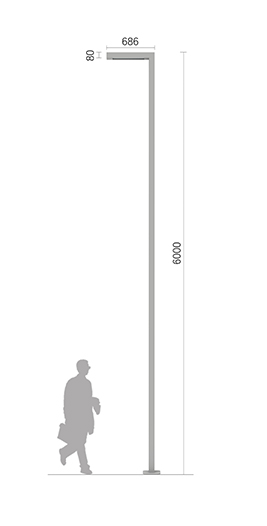

Technical Data

Height(mm)	Top OD(mm)	Butt OD(mm)	Light Arm Length(mm)	Light Fixture Connection OD (mm)	Wall Thickness (mm)	Base Plate (mm)	Hole Distance (mm)
4000	80×160	80×160	686	–	3.0	250x250x15	180×180
5000	80×160	80×160	686	–	3.0	250x250x15	180×180
6000	80×160	80×160	686	–	3.0	250x250x15	180×180
8000	80×160	80×160	686	–	3.0	250x250x15	180×180

Features

Beauty & practicality

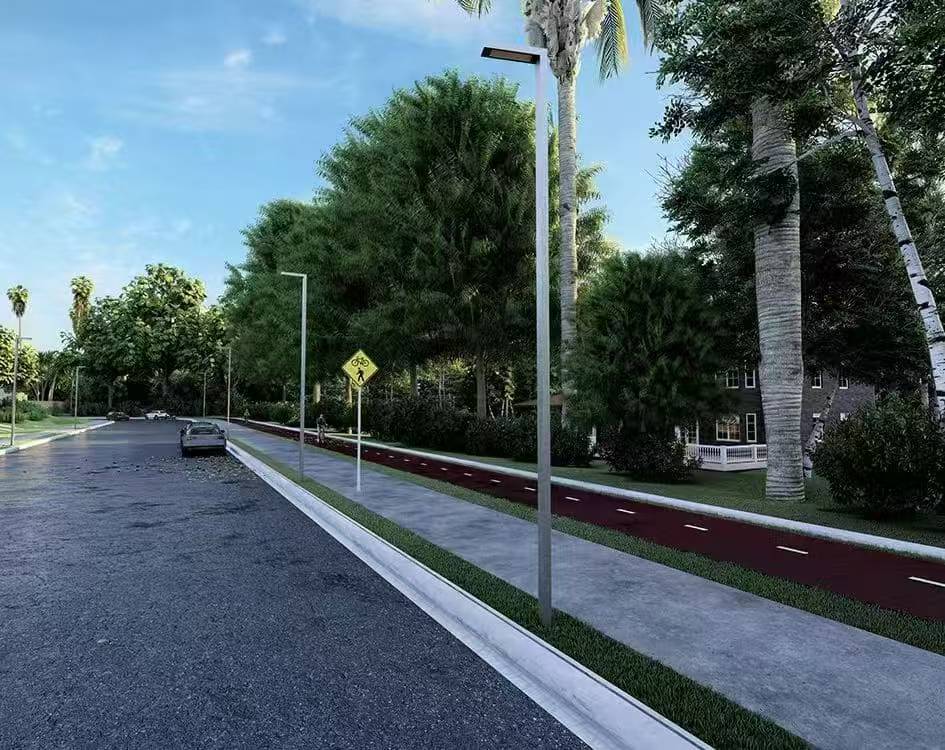

The streamlined tapered design enhances the urban landscape while supporting the installation of a variety of lighting and smart devices.

Easy installation

The structure is more convenient to transport and install, and the height, efficient wall thickness and surface treatment can be customized according to needs.
