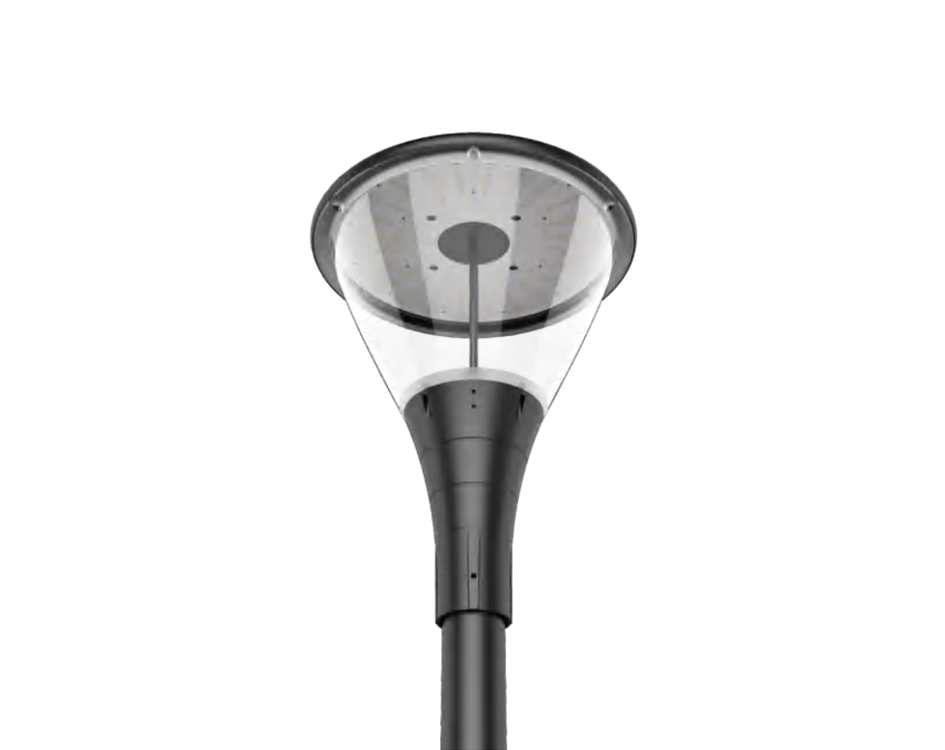

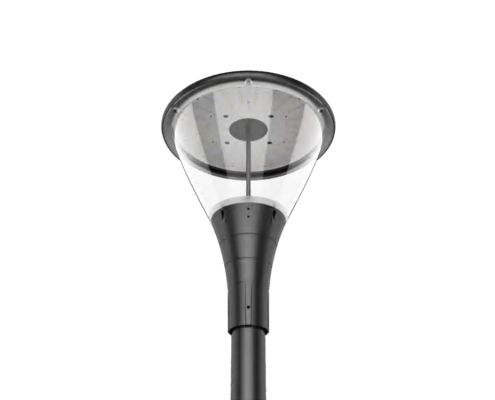

LM-1056

Efficient and Durable Outdoor Lighting Solution.

It features a modern, minimalist design with a corrosion-resistant aluminum body for strong structure and effective heat dissipation. Its wide, glare-free light output ensures clear visibility, while the compact shape reduces wind resistance, making it ideal for stylish and high-performance street lighting.

Get Quote Now

LIGHT ENGINE	Utilizes high-efficiency, long-life LED chips integrated with optimized thermal management
OPTICS	Precision secondary optics (reflectors/lenses) for controlled light distribution (Type II, III, IV, or V available), ensuring uniformity and minimizing glare
HOUSING/HEATSINK	Constructed from high-pressure die-cast aluminum alloy (e.g., ADC12) or extruded aluminum alloy (e.g., 6063) for superior thermal dissipation
GLASS/LENS	High-strength tempered safety glass or UV-resistant polycarbonate (PC) lens. Rated IP66 or higher for environmental protection
MOUNTING	Compatible with pole top tenon for top mounting. Optional side-mount arm bracket interface. Includes hardware
DRIVER/POWER	Integrated constant-current LED driver (100-277V AC). High Power Factor (PF > 0.9), low THD (<20%). Complies with UL/CE safety standards
CONTROL	Standard 0-10V dimming. Optional NEMA socket-compatible smart controls for photocell, scheduling, motion sensing, and remote monitoring
FINISH	Standard: Weather-resistant polyester powder coating (RAL colors). Optional anodizing per customer specifications
CERTIFICATIONS	Complies with UL 1598, UL 8750, DLC, IP66, IK08 standards. Certification details available upon request
WARRANTY & L70	5-year limited warranty. Minimum L70 rated lifespan: 50000 hours under specified conditions
OPTIONS	Available: Multiple light distributions, CCT (3000K-5000K), lumen packages, smart controls, and custom solutions

Technical Data

Power	LED	Driver	CRI	Beam Angle	Input Voltage	IP Rating	Operating Temperature Range
7000	90	165	1000	60	3.5	270x270x18	180×180

Features

Aesthetics Meets Performance

Sleek, elegant design seamlessly integrates with poles to enhance urban landscapes.Advanced optical engineering delivers high-efficiency, uniform illumination while minimizing light pollution and glare.

Robust & Long-Lasting

High-thermal-conductivity materials and optimized thermal management ensure stable, extended LED lifespan.Precision die-cast housing with IP66/IP67 rating provides superior dust/water resistance and corrosion protection for harsh outdoor environments.

Customization Options

Multiple optical distributions, color temperatures (CCT), and finishes available to match project aesthetics.Tailored solutions for wattage, efficacy, and smart control integration (e.g., dimming, energy monitoring, remote management).
