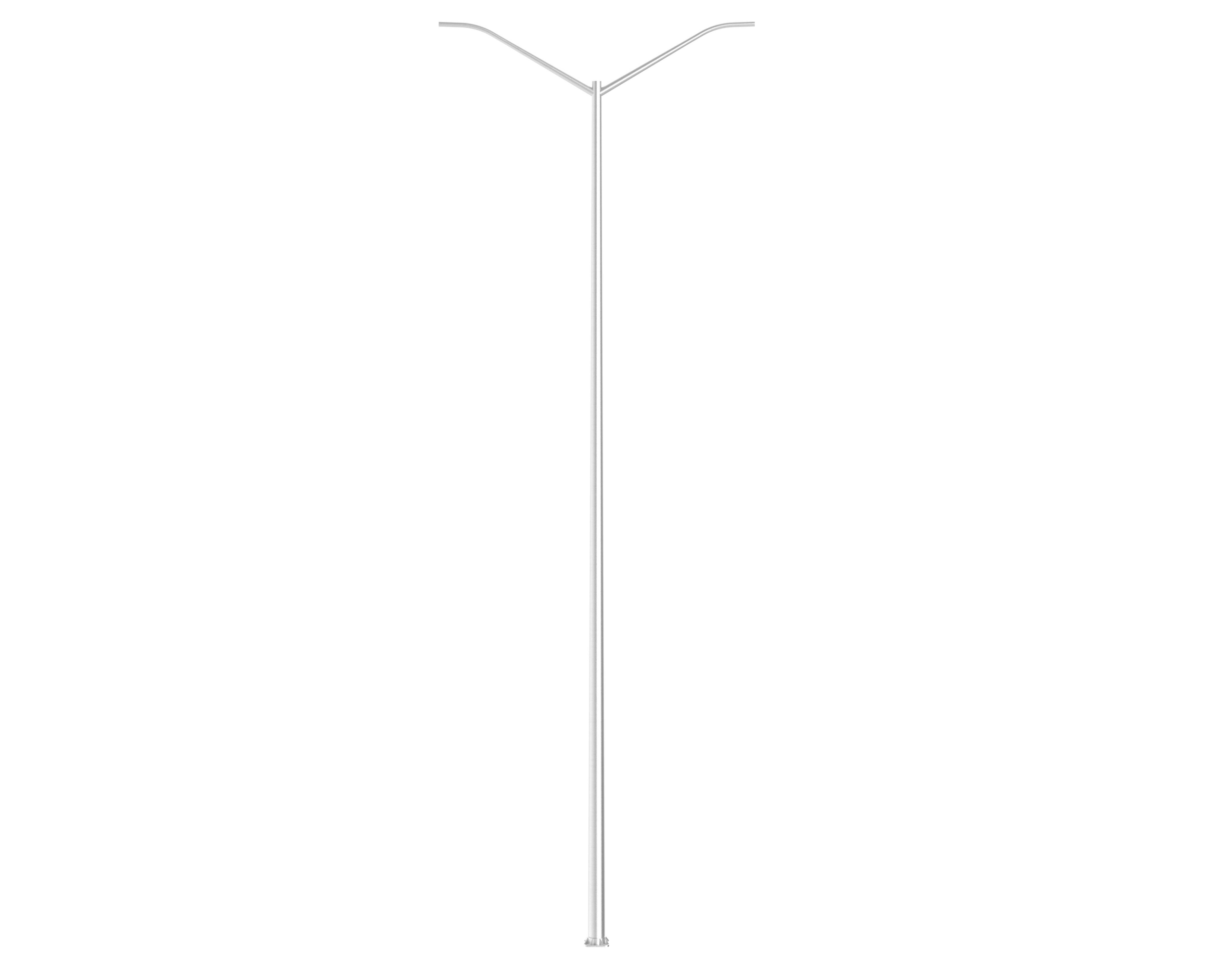

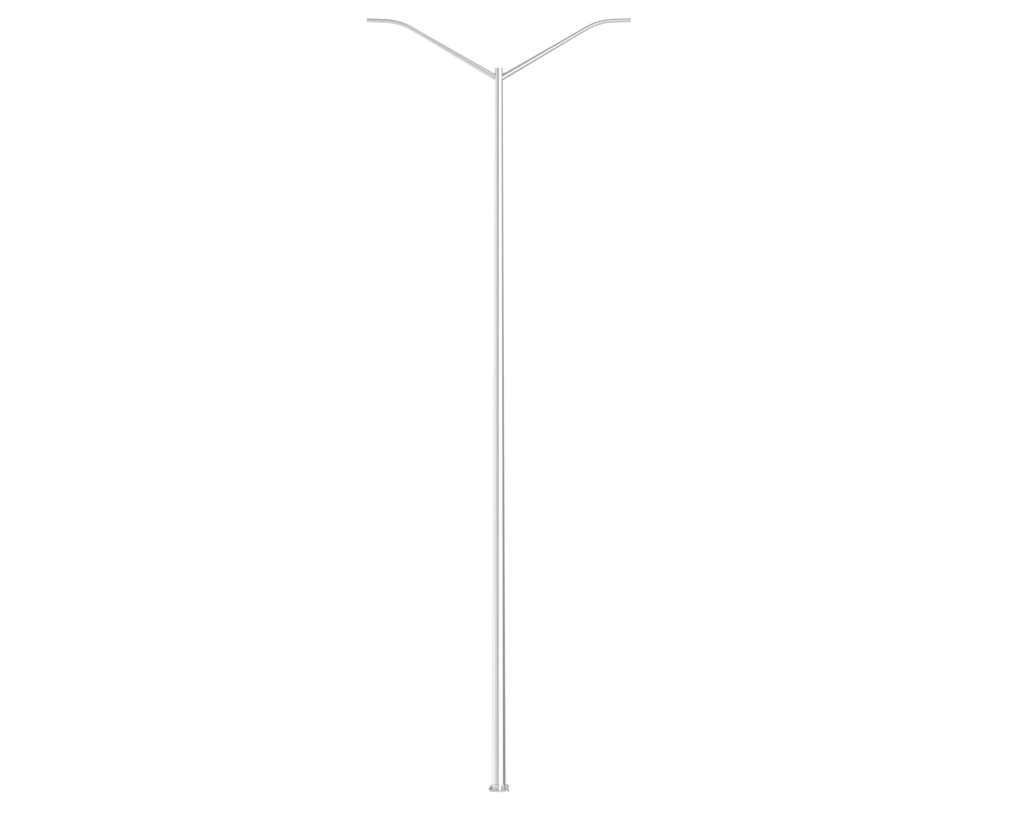

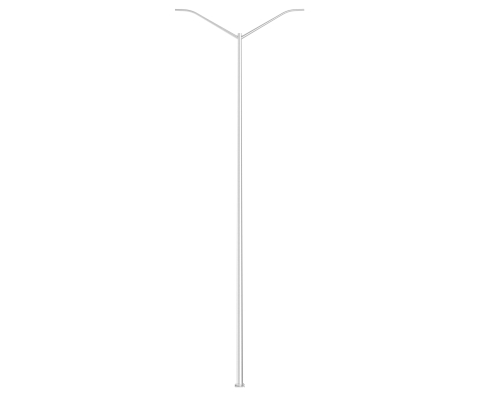

Classic and practical design
Crafted from high-grade aluminium alloy,the light pole guarantees lightweight strength,corrosion resistance and long-term structural integrity,even in harsh weather conditions.The conical shape minimizes wind load pressure by redirecting airflow around the pole,reducing structural stress and enhancing stability in high-wind conditions.
| Pole | The pole shaft is spun from seamless alloy aluminum 6063 pipe |
|---|---|
| Pole Top | A pole top tenon is provided for top mount luminaire and/or bracket. A removable pole cap is available for poles receiving drilling patters for side-mount luminaire arm assemblies |
| Handhole | A covered handhole with hardware and grounding provision are provided |
| Base Cover | Optional round or square base cover available as special order |
| Anchor Base | The anchor base is cast from A356 alloy aluminum. The completed assembly is heat-treated to a T6 temper. Aluminum nut covers are included with anchor base unless otherwise specified |
| Anchor Bolts | Anchor bolts conform to ASTM F1554 Grade 55 and are provided with two hex nuts and two flat washers. Bolts have an “L” bend on one end and are galvanized a minimum of 12″ on the threaded end |
| Finish | The standard finish for the pole assembly and components is satin brushed, natural anodize, duranodic or polyester powder applied coating in ac- cordance with Landmark’s Specifications. Additional finish options available upon request |
| Design Criteria | Please reference Design Criteria Specification for appropriate design conditions |

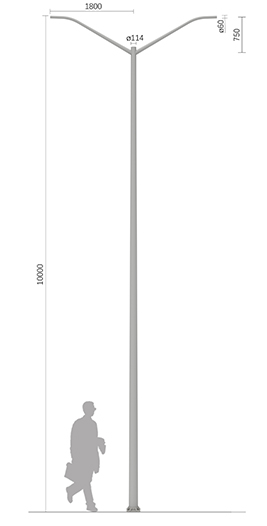

| Height(mm) | Top OD(mm) | Butt OD(mm) | Light Arm Length(mm) | Light Fixture Connection OD (mm) | Wall Thickness (mm) | Base Plate (mm) | Hole Distance (mm) |
|---|---|---|---|---|---|---|---|
| 6000 | 114 | 152 | 1200 | 60 | 3.5 | 260x260x16 | 170×170 |
| 7000 | 114 | 152 | 1500 | 60 | 3.5 | 260x260x16 | 170×170 |
| 8000 | 114 | 178 | 1800 | 60 | 4.0 | 286x286x18 | 190×190 |
| 9000 | 114 | 178 | 1800 | 60 | 4.8 | 286x286x18 | 190×190 |
| 10000 | 114 | 200 | 1800 | 60 | 4.8 | 305x305x19 | 206×206 |
| 12000 | 114 | 200 | 2400 | 60 | 4.8 | 305x305x19 | 206×206 |
The streamlined tapered design enhances the urban landscape while supporting the installation of a variety of lighting and smart devices.
The structure is more convenient to transport and install, and the height, efficient wall thickness and surface treatment can be customized according to needs.
Made of high-strength steel bars or aluminum alloy, with excellent wind resistance, earthquake resistance and corrosion resistance.

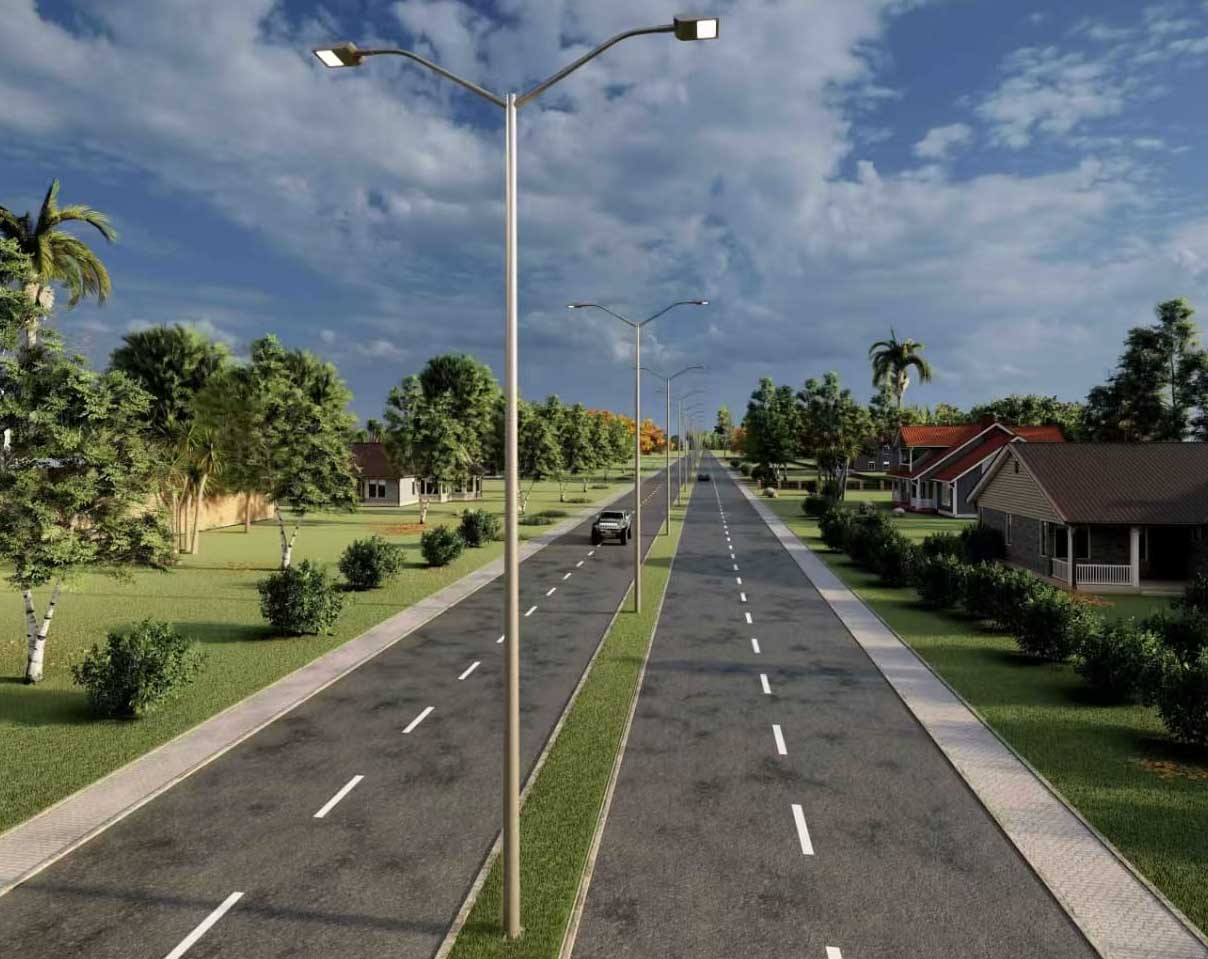

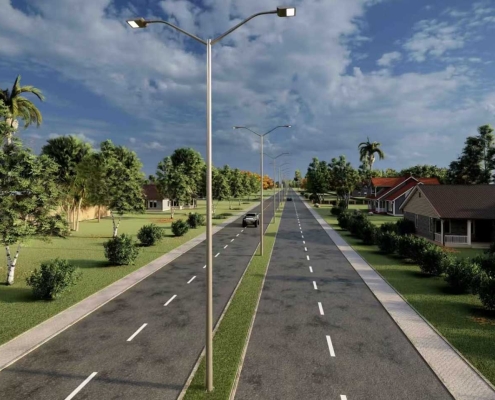

Adding new splendor to the streets
